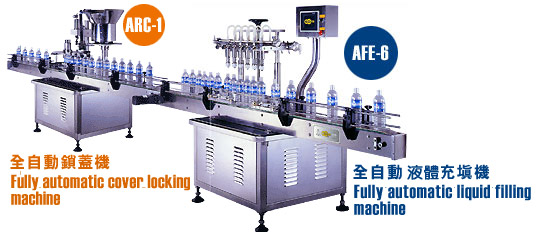

| 全自動鎖蓋機 ARC-1
|
| 自動整蓋 --> 下蓋 -->
鎖蓋 |
| 瓶子高低可調整適合多瓶種使用。 |
| 規格： |
寬0.92公尺 x 高1.6公尺 x
輸送帶長度3公尺重量約450kgs |
| 適用於： |
鋁蓋、梅花蓋、安全蓋、塑膠蓋、王五爪蓋、鍍金蓋 |
| Fully automatic cover locking
machine ARC-1
|
| Automatic cover alignment-->remover cover -->
lock cover |
| The bottle height can be adjusted. |
| Specification: |
W0.92m x H1.6m x
conveyer belt length 3m ,Weight: about 450kgs |
| Applicable: |
Aluminum cover,
plum flower cover, safety cover, plastic cover, 5-paw cover,
|
| |
gold-galvanized
cover. |
| 全自動液體充填機 AFE-6 |
| 每分鐘10-60瓶，容量大小可調整（視充填量多寡及瓶口孔徑大小而訂） |
| 液面接觸材質為不銹鋼符合GMP |
| 規格： |
寬0.92公尺x高1.6公尺x輸送帶長度3公尺重量約400kgs |
| 適用於： |
牛奶、醬油、豆漿、洗髮精、礦泉水、清純奶精、機油、米漿、沐浴乳、果汁健康飲料 |
| |
、食品添加劑、羊乳、食用油、杏仁、保養品乳液、調味劑、酒。 |
| Fully automatic liquid filling machine AFE-6
|
| 10~60 tons per
minute with adjustable capacity. |
| Liquid contact material is stainless steel, conforming
to G.P. |
| Specification: |
W0.92m x h1.6m x
conveyer belt length 3m , Weight: about 400kgs. |
| Applicable: |
milk, soy sauce,
bean milk, shampoo, mineral water, juice health drink, cream,
|
|
lubricant, rice
milk,bathing lotion, detergent, food additive, gout milk, food
oil, |
| |
almond maintenance
item, teste mixture, lotion. |

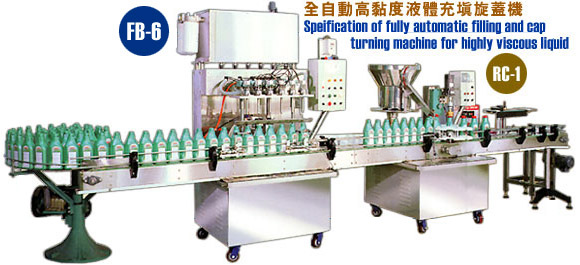

| 全自動高黏度液體充填旋蓋機 |
| FB-6 |
| 充填方面： |
主機寬至1公尺，長度1公尺，填充量〈1〉100㏄～1000㏄
〈2〉1000㏄～2000㏄可調整 |
| |
馬力2HP，每分鐘瓶(視充填物品質而定)，塑膠瓶及玻璃瓶皆可。充填嘴口本身視 |
| 產品需要量而定，單嘴或多嘴口選擇。 |
| RC-1 |
| 旋蓋方面： |
主機長度及寬度為0.8至1公尺，馬力1HP，扭力快慢可調整。全自動整蓋、上蓋、旋蓋， |
| |
塑膠蓋、鋁蓋或鍍金鋁蓋皆可。 |
| |
包裝速度：可視機械本身的包裝物與材料而定，可選擇加裝其它的設備。 |
| |
全機外殼不銹鋼符合GMP |
| |
特殊構造亦可訂製 |
| 適用於： |
| 機油、化妝保養品、洗髮專用品、食品油、食品添加劑等。 |
| Speification of fully automatic filling and cap
turning machine for highly viscous
liquid |
| FB-6 |
| Filling Section: |
Main machine's
width is 0.8 to 1 meter and its length 1 meter. The filling
|
| |
quantity is
100c.c.-1,000c.c. which is adjustable. Its horse powers are 2
HP |
| |
. it can fill 20-60
bottles per minute depending upon the nature of the filling
|
| |
material. The
bottle may either be made up of plastic or glass, which is
|
| |
suitable for
filling purpose of the machine, The chuting mouth for filling
|
| |
purpose depends
upon the requirement of the product, either in single
|
| |
mouth type or
multiple mouth type. |
|
milk, soy sauce,
bean milk, shampoo, mineral water, juice health drink, cream,
|
| Cap turning section: |
Main machine is 0.8
to 1meter in width, and 1 meter in length. The fast or
|
| |
slow motion of its
torque is adjustable. The loading, turning or adjustment
|
| |
of cap is carried
out in full automatic way. Any plastic, aluminum or
|
| |
aluminum cap which
has been gold plated is applicable to the
machine. |
| |
Packing speed:it is
determined by the packing contents with the machine
|
| |
and packing
material. The user may select other auxiliary equipments to
|
| |
the
machine. |
| |
Machine's outer
housing agrees with GMP |
| |
Special Structure
is available in production under custom order. |
| It is applicable to the use of machine oil, cosmetic
maintenance product, shampoo specialty, |
| edible oil, and food additive
etc. |

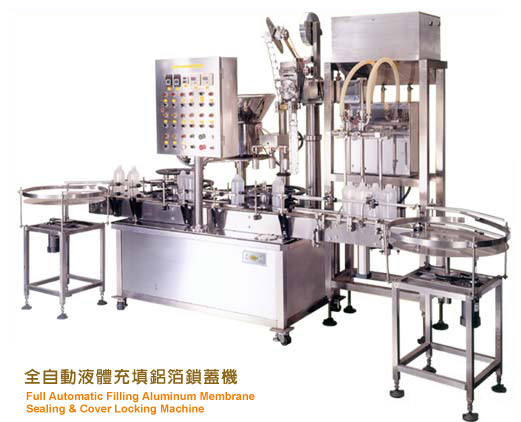

| 全自動液體充填鋁箔鎖蓋機 |
| 特性： |
1.
多種組合、全自動流程、填充量100㏄±1～1000㏄±3可調整，每分鐘20～60瓶，塑膠瓶及玻璃瓶皆可。 |
| 2.
鋁箔封口系列：自動成型，自動加熱封口一次完成。 |
| 3.
自動整蓋瓶蓋扭力鎖緊後自動停止，保證不損傷瓶蓋。 |
4.
一貫系列、美觀大方、操作簡單明瞭，填充量精準度高。
其過程可：
（一）各自獨立操作。
（二）全自動整體控制。 |
| 適用於： |
高黏度（或有顆粒）、油類、乳類、化工、乳液、洗髮保養品等……。 |
| 主機： |
高度（H）：750～８２０㎜可調整
馬力：3Hp
長度（L）：1510㎜ 附凹型槽，不外漏
寬度（W）：910㎜
輸送帶長度：3～4米
馬力1/8HP
重量：約700KGS
出口集瓶轉盤 直徑600㎜ 馬力1/8 HP
入口集瓶轉盤
直徑600㎜ 馬力1/8 HP |
充填機編號：（FE-2）
鋁箔機編號：（MS-3）
鎖蓋機編號：（RC-1） |
| Features： |
|
1. |
Multiple kinds of combination Fully Automatic
flow 20~60 capsules per minute, applicable both to
plastic bottle and glass bottle. |
|
2. |
Aluminum membrane sealing series: Automatic
formation, Automatic heating sealing, to be completed at
once. |
|
3. |
Automatic cover arrangement, bottle cover torque
will be automatically stopped after it is tightly
locked, guaranteed without damage to a bottle cover
absolutely. |
|
4. |
A
through series, beautiful and commonly acceptable,
simple and easily understood operation; its process may
(1) be independently operated individually, (2) fully
automatic control on an overall
basis. | |
| Applicable to liquid: |
| in high viscosity (or with particle), oil kind, milk
kind, chemical engineering, lotion, shampoo maintenance items,
etc. |
| Mainframe: |
(H): 750~820m/m adjustable HP:3HP
(L): 1510m/m (W):
910m/m Accessed with concave tank, no leakage
Conveyor belt
length: 3~4m
Weight: at about 700kgs
Outlet bottle
gathering disc diameter 600m/m 1/8HP
Inlet bottle gathering
disc diameter 600m/m 1/8HP
|
